Honeywell-CT70
, ,

Honeywell-CT70

+ Free Shipping
Categories: , ,

Overview

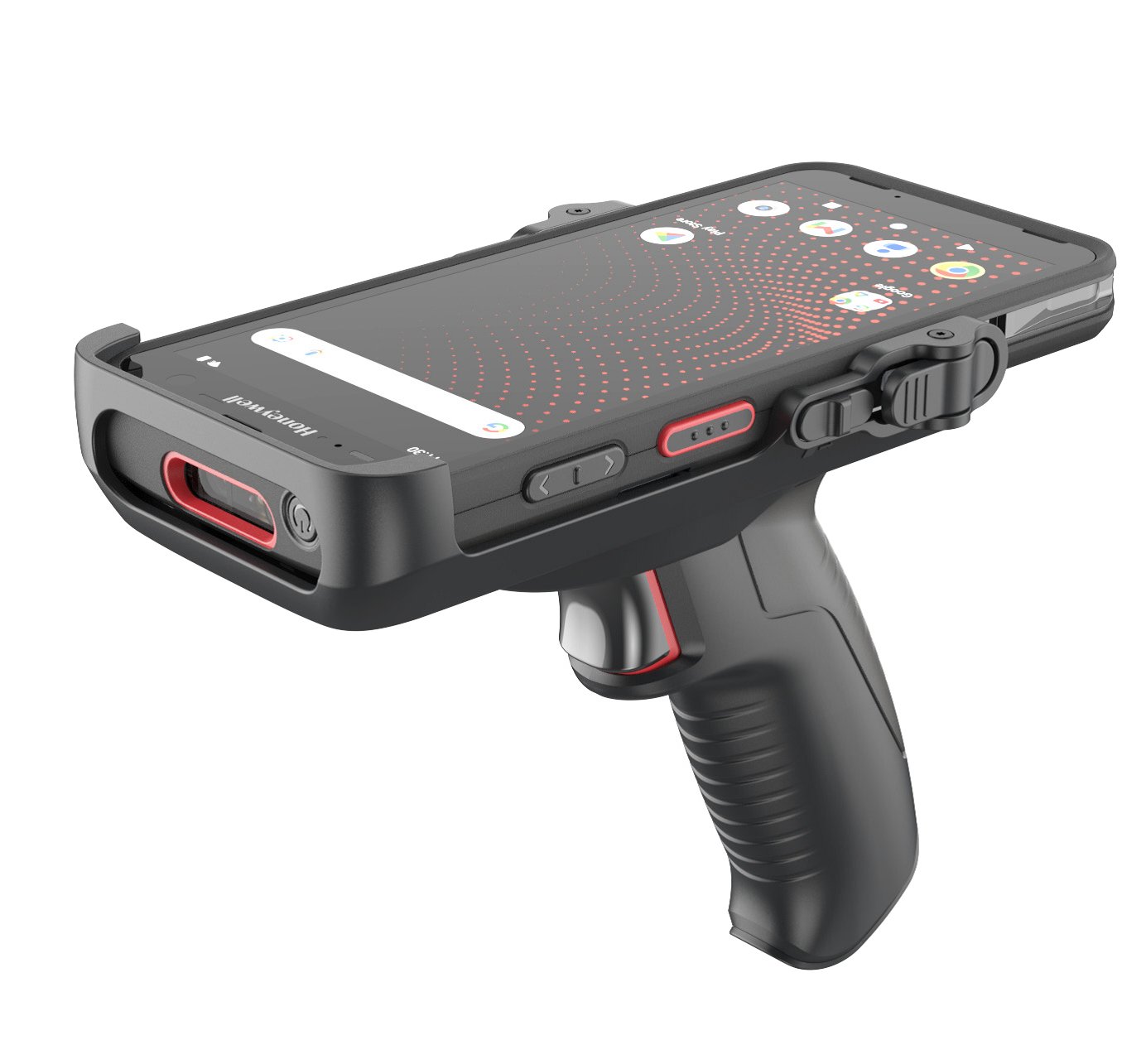

The Honeywell / Brady CT70 is a high-performance mobile computer with advanced features including 5G cellular, the Android O/S with an easy upgrade path to Android 19, an AI processor, and Wi-Fi 7.

It is well suited in environments including Retail, Warehousing, Logistics, and Manufacturing.  Several features make the CT70 an ideal investment for businesses who are seeking a device that will endure through tough environments and give the maximum uptime.

Key Features for a Long-term Investment

Operating System Android 14 with upgrades planned through at least A19
Display 6.0 inch display, hardened glass to resist breaks or scratches when dropped
Cellular Wi-Fi 7
Cellular 5G and CBRS
Ruggedness Multiple 2.4 m (8 ft) drops to concrete
Processor Qualcomm Snapdragon QCS/ QCM6690 octa-core, up to 2.9GHz, Edge AI enabled (2.0GHz optional).
Barcode Scanning All major 1D and 2D type barcodes including QR Code

Configuration Guide

CT70 Configuration Guide
The CT70 is available with many options so you can get a device optimized for your business.  This guide will help you understand the choices to be made before we can make an accurate quote.

Scan Engine Choices
The CT70 has three scan engine options available (standard range, Flex Range, and Flex Range XLR) which can be confusing to make a choice.  The actual maximum range will depend on several factors including the barcode type (Code 128, QR Code, etc.), the size of the barcode, the material it is printed on (white label, retroreflective label, etc.) and more.  MSS Software is happy to provide CT70 units with each scan engine so you can determine which is best for your business.

Scan Engine Max range List Price
Standard Range ~18 inches $0
Flex Range (N6803FR) ~35 feet +$100
Flex Range XLR (S0803 XLR) ~70 feet +$200

Radio Options
The CT70 comes standard with Bluetooth and Wi-Fi like.  The cellular/CBRS radio is optional and not field upgradable

RFID Option
An internal RFID radio / reader is available for reading 900 mHz RFID tags.  The internal RFID reader cannot be added or upgraded in the field.

Battery Options
The CT70 has three battery options: a standard battery, an extended capacity battery, and a wireless charging battery.

Battery Capacity
Standard Battery:        4,775mAh
Extended Battery:       7,692mAh
Wireless Battery:         4,775mAh

Accessories

Common Accessories

Scan Handle – Snap on / field installable
HomeBase (Single Slot Dock).  Available Booted or non-Booted.  Booted means the scanners has a protective cover.

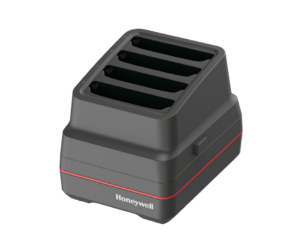

4 Bay Battery Chargers

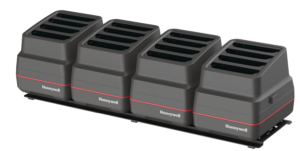

16 Bay Battery Charger

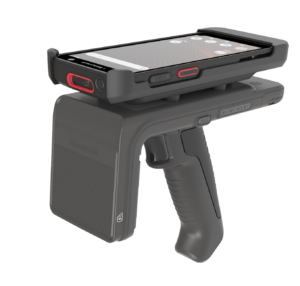

RFID Reader

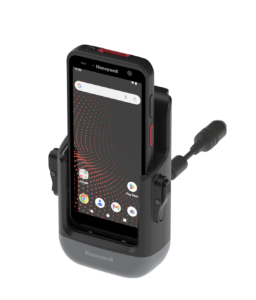

Vehicle Dock.  Powered or non-Powered

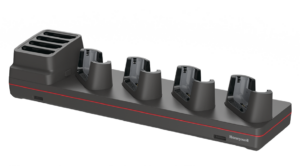

ChargeBase and Netbase

Booted & non-Booted





Warranties

The CT70 comes standard with a 1 year warranty.  Extended warranties elevate the coverage to include incidental damage (e.g. broken screen after a drop).  Gold and Platinum warranties are offered as outlined in the table below.  Warranty periods are for 3 or 5 years of total coverage.



SERVICES BASIC GOLD PLATINUM
Contract Length 1 or 2 Years 3 or 5 Years 3 or 5 Years
Spare Pool Management Can be added to
Basic Contracts		 Can be added to
Gold Contracts		 ✓
Accessory Replacement – ✓
Battery Refresh – ✓
Device Replacement – ✓
Accidental Damage – ✓ ✓
Component Repair – ✓ ✓
Wear and Tear – ✓ ✓
Android Updates/Patches ✓ ✓ ✓
Warranty Repair ✓ ✓ ✓
Technical Support ✓ ✓ ✓
Depot Turnaround Time (TAT) 15 Days 5 Days¹ 2 Days

Procurement Options

Purchase, Lease or Rent from MSS Software.  Purchase to own your equipment from day 1.  Lease for a fixed rate over a defined period with a low interest rate defined by contract.  Rent for a low flat rate with no contract.

Purchase to get the best price on the Honeywell CT70 from MSS Software who is one of the largest volume dealers for Honeywell barcode technology in North America.  We pass our Platinum Elite partner discounts on to our customers so you can be condiment you are getting the best deal.

Leasing is the best way to get the best technology today for a low monthly payment.  MSS Software provides the best rates and fastest approvals for Honeywell barcode scanners.

Renting barcode scanners such as the CT70 is a great option for short-term needs such as year-end physical inventory count or try before you buy.  In some cases, a good option is to both buy and rent barcode scanners so you can cover your day-to-day needs with purchased equipment and get additional units for those one week to one month periods for seasonal demand.

Part Numbers

CT70 Part Numbers

Wi-Fi + Cellular SKUs
SKU Description List $
CT70-X1N-057CE104G CT70: 5G&WIFI7/6E, Nano & ESim, 6’ Screen, Full Touchscreen, 8GB/128GB, Standard Range Engine-Red Laser, Front & Rear Camera, Extended Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 3,018.46
CT70-X1N-057CS104G CT70: 5G&WIFI7/6E, Nano & ESim, 6’ Screen, Full Touchscreen, 8GB/128GB, Standard Range Engine-Red Laser, Front & Rear Camera, Standard Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 2,974.16
CT70-X1N-057CW104G CT70: 5G&WIFI7/6E, Nano & ESim, 6’ Screen, Full Touchscreen, 8GB/128GB, Standard Range Engine-Red Laser, Front & Rear Camera, Wireless Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 3,037.44
CT70-X1N-058CE104G CT70: 5G&WIFI7/6E, Nano & ESim, 6’ Screen, Full Touchscreen, 8GB/128GB, FlexRange Engine-Green Laser, Front & Rear Camera, Extended Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 3,145.02
CT70-X1N-058CS104G CT70: 5G&WIFI7/6E, Nano & ESim, 6’ Screen, Full Touchscreen, 8GB/128GB, FlexRange Engine-Green Laser, Front & Rear Camera, Standard Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 3,100.72
CT70-X1N-058CW104G CT70: 5G&WIFI7/6E, Nano & ESim, 6’ Screen, Full Touchscreen, 8GB/128GB, FlexRange Engine-Green Laser, Front & Rear Camera, Wireless Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 3,164.00
CT70-X1R-057CS104G CT70 RFID: 5G&WIFI7/6E, Nano & ESim, 6’ Screen, Full Touchscreen, 8GB/128GB, Standard Range Engine-Red Laser, Front & Rear Camera, Standard Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 3,101.28
CT70-X1R-058CS104G CT70 RFID: 5G&WIFI7/6E, Nano & ESim, 6’ Screen, Full Touchscreen, 8GB/128GB, FlexRange Engine-Green Laser, Front & Rear Camera, Standard Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 3,227.84
CT70-X1R-057CE104G CT70 RFID: 5G&WIFI7/6E, Nano & ESim, 6’ Screen, Full Touchscreen, 8GB/128GB, Standard Range Engine-Red Laser, Front & Rear Camera, Extended Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 3,144.96
CT70-X1R-058CE104G CT70 RFID: 5G&WIFI7/6E, Nano & ESim, 6’ Screen, Full Touchscreen, 8GB/128GB, FlexRange Engine-Green Laser, Front & Rear Camera, Extended Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 3,271.52



Models with Wi-Fi and without Cellular
SKU Description List $
CT70-L0N-057CE104G CT70: WIFI7/6E, 6’ Screen, Full Touchscreen, 8GB/128GB, Standard Range Engine-Red Laser, Front & Rear Camera, Extended Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 2,828.62
CT70-L0N-057CS104G CT70: WIFI7/6E, 6’ Screen, Full Touchscreen, 8GB/128GB, Standard Range Engine-Red Laser, Front & Rear Camera, Standard Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 2,784.32
CT70-L0N-057CW104G CT70: WIFI7/6E, 6’ Screen, Full Touchscreen, 8GB/128GB, Standard Range Engine-Red Laser, Front & Rear Camera, Wireless Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 2,847.60
CT70-L0N-058CE104G CT70: WIFI7/6E, 6’ Screen, Full Touchscreen, 8GB/128GB, FlexRange Engine-Green Laser, Front & Rear Camera, Extended Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 2,955.18
CT70-L0N-058CS104G CT70: WIFI7/6E, 6’ Screen, Full Touchscreen, 8GB/128GB, FlexRange Engine-Green Laser, Front & Rear Camera, Standard Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 2,910.88
CT70-L0N-058CW104G CT70: WIFI7/6E, 6’ Screen, Full Touchscreen, 8GB/128GB, FlexRange Engine-Green Laser, Front & Rear Camera, Wireless Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 2,974.16
CT70-L0N-059CS104G CT70: WIFI7/6E, 6’ Screen, Full Touchscreen, 8GB/128GB, FlexRange Engine-S0903 ULR Green Laser, Front & Rear Camera, Standard Battery, GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 3,000.48
CT70-L0N-057CS204G CT70: WIFI7/6E, 6’ Screen, Full Touchscreen, 8GB/128GB, Standard Range Engine-Red Laser, Front & Rear Camera, Standard Battery, non-GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 2,784.32
CT70-L0N-058CS204G CT70: WIFI7/6E, 6’ Screen, Full Touchscreen, 8GB/128GB, FlexRange Engine-Green Laser, Front & Rear Camera, Standard Battery, non-GMS, IP65/68, No Gov Cert., Launcher/Browser/BasicTE, Global 2,910.88
